ABSTAIN CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

THREE "STAIGHT 2 IN 1 CHAINS" INTERWOVEN INTO EACHOTHER IN A SPIRAL.

PICTURE SHOWS: 16SWG 1/4" ID

ACUTE MANDALA UNIT

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "JAPANESE DRAGONSCALE UNIT" BUT HAS 2 VERTICAL RINGS IN EACH SECTION INSTEAD OF 3.

PICTURE SHOWS: 16SWG 7/32", 11/32", 3/8" ID

ALLIGATOR RIVER SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

LEFT AND RIGHT HANDED "HALF PERSIAN 3 IN 1 CHAINS" CONNECTED WITH "EUROPEAN 4 IN 1 SHEET."

PICTURE SHOWS: 16SWG 7/32", 9/32" ID

ARMADILLO 3 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"GRIDLOCK 4 IN 1 SHEET" WITH AN EXTRA LAYER OF HORIZONTAL RINGS.

PICTURE SHOWS: 16SWG 9/32" ID

ARMADILLO 4 SHEET

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"ARMADILLO 3 SHEET" WITH A FOURTH LAYER OF HORIZONTAL RINGS.

PICTURE SHOWS: 16SWG 5/16" ID

ATTICA 3 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "ARMADILLO 3 SHEET" BUT ALTERNATES THE LAYERING OF THE HORIZONTAL RINGS.

PICTURE SHOWS: 16SWG 1/4" ID

ATTICA 4 SHEET

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"ATTICA 3 SHEET" WITH A FOURTH LAYER OF HORIZONTAL RINGS.

PICTURE SHOWS: 16SWG 9/32" ID

AURA 2 CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "CELTIC VISIONS CHAIN" BUT INCLUDES BOLTED CONNECTIONS.

PICTURE SHOWS: 16SWG 5/16" ID, 18SWG 3/16" ID

AURA 3 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"AURA 3 UNITS" CONNECTED IN A CHAIN.

PICTURE SHOWS: 16SWG 5/16" ID, 18SWG 3/16", 1/8" ID

AURA 3 HEXAGON SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"AURA 3 UNIT" CONNECTED IN A HEXAGON AND EXPANDED TO FORM A SHEET.

PICTURE SHOWS: 16SWG 5/16" ID, 18SWG 5/32", 3/16" ID

AURA 3 ICOSAHEDRON 3D

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"AURA 3 UNITS" CONNECTED IN A PENTAGON AND EXPANDED TO FORM A 3D ICOSAHEDRON.

PICTURE SHOWS: 16SWG 5/16" ID, 18SWG 5/32", 3/16" ID

AURA 3 INVERTED UNIT

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "AURA 3 UNIT," BUT THE LAYERING OF THE HORIZONTAL RINGS IS INVERTED.

PICTURE SHOWS: 16SWG 11/32" ID, 18SWG 3/16" ID

AURA 3 UNIT

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "AURA 3 INVERTED UNIT," MINUS THE INVERSION.

PICTURE SHOWS: 16SWG 5/16" ID, 18SWG 5/32", 3/16" ID

AURA 3 VARIANT SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"AURA 3 UNITS" IN A TRIANGULAR SHEET WITH LARGE INTERCONNECTED RINGS.

PICTURE SHOWS: 16SWG 5/16", 13/32" ID, 18SWG 3/16" ID

BODDHI CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "ORBITAL VIPERA BERUS 2 CHAIN" BUT THE LARGER RINGS ARE CONNECTED TO EACH OTHER IN A "SPIRAL 4 IN 1 CHAIN."

PICTURE SHOWS: 16SWG 7/32", 13/32" ID

BOREALIS SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A "CELTIC VISIONS" HEXAGONAL BASED SHEET. "BOREALIS UNIT" CONTINUED IN A SHEET.

PICTURE SHOWS: 16SWG 7/16" ID, 18SWG 3/16" ID

BOREALIS UNIT

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A "CELTIC VISIONS" HEXAGONAL BASED UNIT.

PICTURE SHOWS: 16SWG 7/16" ID, 18SWG 3/16" ID

BOREWORM CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "REINFORCED INVERTED CHAIN" BUT EVERY OTHER 3 RING SECTION SPINS THE OPPOSITE DIRECTION.

PICTURE SHOWS: 16SWG 11/32" ID

BOX 4 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"EUROPEAN 4 IN 1 SHEET" WRAPPED IN A TUBE WITH 4 SIDES.

PICTURE SHOWS: 16SWG 1/4", 5/16" ID

BOX 6 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"EUROPEAN 6 IN 1 SHEET" WRAPPED IN A TUBE WITH 4 SIDES.

PICTURE SHOWS: 16SWG 11/32", 13/32" ID

BOX 8 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"BOX 4 IN 1 CHAINs" ATTACHED IN A SHEET.

PICTURE SHOWS: 16SWG 3/8" ID

BOX MAILLE SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"BOX 4 IN 1 CHAINS" ATTACHED IN A SHEET WHERE VERTICAL RINGS ARE 8 IN 1 AND HORIZONTAL RINGS ARE 4 IN 1.

PICTURE SHOWS: 16SWG 5/16" ID

BOX VARIANT SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"BOX 4 IN 1 CHAIN" ATTACHED IN A SHEET WHERE VERTICAL RINGS ARE 8 IN 1 AND HORIZONTAL RINGS ARE 6 IN 1.

PICTURE SHOWS: 16SWG 3/8" ID

BYZANTINE 2 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

BOX 4 IN 1 UNITS ATTACHED BY 2 STRAIGHT CONNECTOR RINGS.

PICTURE SHOWS: 16SWG 7/32" ID

BYZANTINE 2 DENSE SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"BYZANTINE 2 CHAIN" IN A SHEET WITH NO BOLTED CONNECTIONS.

PICTURE SHOWS: 14SWG 1/4" ID, 16SWG 1/4" ID

BYZANTINE 2 PENTAGON UNIT (FORMING BYZANTINE 2 DODECAHEDRON)

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"BYZANTINE 2 CHAINS" IN A PENTAGONAL WEB FORMING A DODECAHEDRON.

PICTURE SHOWS: 16SWG 7/16" ID, 18SWG 7/32" ID, 19SWG 1/8", 5/32" ID.

BYZANTINE 2 SHEET

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"BYZANTINE 2 CHAINS" IN A SHEET USING BOLTED CONNECTIONS.

PICTURE SHOWS: 16SWG 3/16", 7/32" ID

BYZANTINE 3 CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

BOX 4 IN 1 UNITS ATTACHED BY 3 STRAIGHT CONNECTOR RINGS.

PICTURE SHOWS: 16SWG 7/32", 1/4" ID

BYZANTINE 3 DENSE SHEET

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"BYZANTINE 3 CHAINS" IN A SHEET WITH NO BOLTED CONNECTIONS.

PICTURE SHOWS: 16SWG 9/32", 5/16" ID

BYZANTINE 3 SHEET

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"BYZANTINE 3 CHAINS" IN SHEET WITH BOLTED CONNECTIONS.

PICTURE SHOWS: 16SWG 3/16", 7/32", 1/4" ID

BYZANTINE HEXAGONAL SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"BYZANTINE 3 CHAINS" IN A HEXAGONAL SHEET WITH LARGE STABILIZING RINGS IN EACH UNIT.

PICTURE SHOWS: 16SWG 5/8" ID, 18SWG 7/32" ID, 19SWG 1/8", 5/32" ID

BYZANTINE ORBIT CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"BYZANTINE 2 CHAIN" AND "ORBIT CHAIN" ALTERNATING.

PICTURE SHOWS: 16SWG 3/16", 7/32", 1/4", 5/16" ID

CALLISTO CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"HELM CHAIN" MIXED WITH "STRAIGHT 2 IN 1 CHAIN."

PICTURE SHOWS: 16SWG 1/4", 3/8" ID

CALLISTO SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"CALLISTO CHAIN" EXTENDED INTO A SHEET.

PICTURE SHOWS: 16SWG 1/4", 3/8" ID

CANDY CANE 6 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

STARTS SIMILAR TO "BOX 4 IN 1 CHAIN." EVERY SECTION BEGINS IN THE SAME CORNER.

PICTURE SHOWS: 16SWG 5/16" ID

CANDY CANE ALTERNATING 6 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "CANDY CANE 6 IN 1 CHAIN," EVERY OTHER SECTION BEGINS IN THE OPPOSITE CORNER.

PICTURE SHOWS: 16SWG 5/16" ID

CANDY CANE SPIRAL 6 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "CANDY CANE 6 IN 1 CHAIN." EVERY SECTION BEGINS IN THE OPPOSITE CORNER.

PICTURE SHOWS: 16SWG 5/16" ID

CAPTIVATED 4 IN 2 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A "STRAIGHT 4 IN 2 CHAIN" HELD CAPTIVE BY ANOTHER "STRAIGHT 4 IN 2 CHAIN."

PICTURE SHOWS: 16SWG 1/4", 11/32" ID

CAPTIVATED CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A "STRAIGHT 2 IN 1 CHAIN" HELD CAPTIVE BY A "STRAIGHT 4 IN 2 CHAIN."

PICTURE SHOWS: 16SWG 1/4" ID, 18SWG 3/16" ID

CELTIC LABYRINTH CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"CELTIC LABYRINTH UNITS" IN A CHAIN.

PICTURE SHOWS: 16SWG 5/16", 7/16" ID, 18SWG 3/16", 5/32" ID

CELTIC LABYRINTH UNIT

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "AURA 3 UNIT" BUT WITH 4 SIDES TO FORM A SQUARE.

PICTURE SHOWS: 16SWG 5/16", 7/16 ID, 18SWG 3/16", 5/32" ID

CELTIC LABYRINTH VARIANT SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"CELTIC LABYRINTH UNITS" IN A SHEET WITH BOLTED CONNECTIONS.

PICTURE SHOWS: 16SWG 5/16", 7/16" ID, 18SWG 3/16", 5/32" ID

CELTIC MOSAIC CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"CELTIC LABYRINTH UNITS" IN A CHAIN WITH NO BOLTED CONNECTIONS.

PICTURE SHOWS: 14SWG 7/16" ID, 16SWG 3/16", 7/32", 5/16" ID

CELTIC MOSAIC RADIAL SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"CELTIC LABYRINTH UNITS" IN A SHEET WITH NO BOLTED CONNECTIONS.

PICTURE SHOWS: 14SWG 1/2" ID, 16SWG 7/32", 1/4", 3/8" ID

CELTIC VISIONS CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"AURA 2 CHAIN" WITH NO BOLTED CONNECTIONS.

PICTURE SHOWS: 16SWG 5/16" ID, 18SWG 3/16" ID

CELTIC VISIONS HEXAGON UNIT

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"CELTIC VISIONS CHAIN" WRAPPED AROUND AND CONNECTED TO A LARGE CENTER RING FORMING A HEXAGON.

PICTURE SHOWS: 14SWG 3/8" ID, 16SWG 5/16" ID, 18SWG 3/16 ID

CELTIC VISIONS PENTAGON UNIT

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"CELTIC VISIONS CHAIN" WRAPPED AROUND AND CONNECTED TO A CENTER RING FORMING A PENTAGON

PICTURE SHOWS: 16SWG 1/4", 9/32" ID, 18SWG 3/16" ID

CELTIC VISIONS SQUARE UNIT

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"CELTIC VISIONS CHAIN" WRAPPED AROUND AND CONNECTED TO A SMALL CENTER RING FORMING A SQUARE.

PICTURE SHOWS: 16SWG 7/32", 3/8" ID, 18SWG 3/16" ID

CENTRIFUGAL CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "ORBITAL VIPERA BERUS CHAIN." THE LARGE RINGS ARE WEAVED BETWEEN THE TWO SMALLER RINGS IN EACH SECTION.

PICTURE SHOWS: 16SWG 9/32", 13/32" ID

CONUNDRUM SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"HELM CHAINS" DIAGONALLY CONNECTED TO FORM A SHEET.

PICTURE SHOWS: 16SWG 11/32"ID, 18SWG 7/32" ID

COYOTE CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A MIX BETWEEN "BOX 4 IN 1 CHAIN" AND "EUROPEAN 4 IN 1 SHEET."

PICTURE SHOWS: 16SWG 11/64" ID

COYOTE 4IN1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"COYOTE CHAIN" MADE INTO A SHEET.

PICTURE SHOWS: 16SWG 3/16" ID

COYOTE CORRAL CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"COYOTE CHAIN" WITH LARGE RINGS HOLDING THE 4 CORNERS OPEN.

PICTURE SHOWS: 16SWG 3/16", 13/32" ID

CYLON CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A MIX OF "HALF PERSIAN 3 IN 1 CHAIN" AND "GRIDLOCK 4 IN 1 SHEET."

PICTURE SHOWS: 16SWG 1/4", 13/32" ID

DOUBLE HALF PERSIAN SPIRAL 8 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"MYCENAEAN 8 IN 1 CHAIN" WITH SPIRALING CONNECTIONS.

PICTURE SHOWS: 16SWG 3/8" ID

DRAGONBACK CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A RIGHT AND LEFT HANDED "HALF PERSIAN 3 IN 1 CHAINS" WITH "EUROPEAN 4 IN 1 SHEET" CONNECTIONS BETWEEN THEM ON BOTH SIDES FORMING A CHAIN.

PICTURE SHOWS: 16SWG 1/4", 5/16" ID

DRAGONSCALE 4 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"DRAGON TAIL 2 IN 1 CHAIN" MADE INTO A SHEET.

PICTURE SHOWS: 16SWG 1/4", 3/8" ID

DRAGON TAIL 2 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

ONE STRAND OF "DRAGONSCALE 4 IN 1 SHEET."

PICTURE SHOWS: 16SWG 13/64", 11/32" ID

ELF 4 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A MIX OF "EUROPEAN 4 IN 1 SHEET" WITH "HALF PERSIAN 3 IN 1 CHAIN."

PICTURE SHOWS: 16SWG 1/4" ID

ELF BOX CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"ELF CHAIN" ON TOP WITH "EUROPEAN 4 IN 1 SHEET" ON THE BOTTOM.

PICTURE SHOWS: 16SWG 1/4", 9/32" ID

ELF BRAID CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"ELF 4 IN 1 CHAIN" WITH TWO ROWS OF RINGS THAT HELP TO RETAIN THE ORIGINAL STRUCTURE.

PICTURE SHOWS: 16SWG 9/32" ID

ELF SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"ELF 4 IN 1 CHAIN" MADE INTO A SHEET.

PICTURE SHOWS: 16SWG 1/4" ID

ENCELADUS CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A MIX OF "FULL PERSIAN 6 IN 1 CHAIN" AND "ONE AND A HALF PERSIAN."

PICTURE SHOWS: 16SWG 5/16" ID

ENTHRALL CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "CAPTIVATED CHAIN," BUT THE "STRAIGHT 2 IN 1 CHAIN" GOES THROUGH A LARGER OUTER RING. THE "STRAIGHT 2 IN 1 CHAIN" REMAINS CAPTIVE AND UNCONNECTED TO ANY OTHER RINGS.

PICTURE SHOWS: 16SWG 3/16", 1/4", 5/16" ID

EUROPA 8 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

TWO "EUROPEAN 4 IN 1 SHEETS" LAYED OUT ON TOP OF EACH OTHER WITH VERTICAL RINGS CONNECTING THEM.

PICTURE SHOWS: 16SWG 13/32" ID

EUROPEAN 3 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "TRINITY 3 IN 1 SHEET." INCLUDES RIGHT AND LEFT HAND CONNECTIONS.

PICTURE SHOWS: 16SWG 13/64" ID

EUROPEAN 4 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "TRINITY 3 IN 1 SHEET." EACH RING IS CONNECTED TO FOUR OTHERS.

PICTURE SHOWS: 16SWG 13/64" ID

EUROPEAN 5 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "EUROPEAN 3 IN 1 SHEET." EACH RING IS CONNECTED TO FIVE OTHERS.

PICTURE SHOWS: 16SWG 5/16" ID

EUROPEAN 6 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "EUROPEAN 4 IN 1 SHEET." EACH RING IS CONNECTED TO SIX OTHERS.

PICTURE SHOWS: 16SWG 5/16" ID

EUROPEAN 7 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "EUROPEAN 3 IN 1 SHEET" EACH RING IS CONNECTED TO SEVEN OTHERS.

PICTURE SHOWS: 16SWG 3/8" ID

EUROPEAN 8 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "EUROPEAN 4 IN 1 SHEET." EACH RING IS CONNECTED TO EIGHT OTHERS.

PICTURE SHOWS: 16SWG 3/8" ID

FIELDSTONE CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "SWEET PEA CHAIN." CONNECTS 1, 1, 2, AND 2 RINGS FOR A TOTAL OF 6 IN EACH SECTION.

PICTURE SHOWS: 16SWG 1/4" ID

FORARS KAEDE 4 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

BEGINS LIKE "HALF PERSIAN 4 IN 1 CHAIN," THEN THE PLACEMENT OF EACH ADDITIONAL RING ALTERNATES FROM FRONT TO BACK.

PICTURE SHOWS: 16SWG 1/4" ID

FULL PERSIAN 5 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"FULL PERSIAN 6 IN 1 CHAIN" BUT MISSING ONE CONNECTION.

PICTURE SHOWS: 16SWG 11/32" ID

FULL PERSIAN 6 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

TWO SAME HANDED "HALF PERSIAN 3 IN 1 CHAINS" JOINED TOGETHER WITH OPPOSITE HAND CONNECTIONS.

PICTURE SHOWS: 16SWG 11/32" ID

FULL PERSIAN 8 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "FULL PERSIAN 6 IN 1 CHAIN." EACH RING IS CONNECTED TO EIGHT OTHERS.

PICTURE SHOWS: 16SWG 1/2" ID

FULL PERSIAN ELVEN CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A MIX OF "FULL PERSIAN 6 IN 1 CHAIN" AND "ELF 4 IN 1 CHAIN."

PICTURE SHOWS: 16SWG 11/32" ID

FULL PERSIAN FLAT 5 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "FULL PERSIAN 6 IN 1 CHAIN." EACH RING IS CONNECTED TO FIVE OTHERS.

PICTURE SHOWS: 16SWG 11/32" ID

FULL PERSIAN GOBI 8 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "FULL PERSIAN 8 IN 1 CHAIN." WEAVES 3 RINGS UP AND 1 RING DOWN INTSTEAD OF 2 RINGS UP AND 2 RINGS DOWN.

PICTURE SHOWS: 16SWG 1/2" ID

FULL PERSIAN GRIZZLY 6 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "FULL PERSIAN 6 IN 1 CHAIN." ALL THE RINGS LEAN IN THE SAME DIRECTION IN EACH VIEW.

PICTURE SHOWS: 16SWG 7/16" ID

FULL PERSIAN GRIZZLY 8 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "FULL PERSIAN 8 IN 1 CHAIN." ALL FOUR SIDES ARE IDENTICAL.

PICTURE SHOWS: 16SWG 1/2" ID

FULL PERSIAN SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"FULL PERSIAN 8 IN 1 CHAINS" CONNECTED IN A SHEET. EACH HORIZONTAL RING CONNECTS TO 12 OTHERS. EACH VERTICAL RING CONNECTS TO 8 OTHERS.

PICTURE SHOWS: 16SWG 1/2" ID

GRIDLOCK 4 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "EUROPEAN 4 IN 1 SHEET." REVERSES DIRECTION IN EACH SECTION.

PICTURE SHOWS: 16SWG 15/64" ID

HALF PERSIAN 3 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

HALF OF "FULL PERSIAN 6 IN 1 CHAIN."

PICTURE SHOWS: 16SWG 17/64" ID

HALF PERSIAN 4 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

THE NEXT PROGRESSION OF "HALF PERSIAN 3 IN 1 CHAIN." EVENLY NUMBERED HALF PERSIAN CHAINS LAY FLAT AND ARE THE SAME ON BOTH SIDES.

PICTURE SHOWS: 16SWG 5/16" ID

HALF PERSIAN 4 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "HALF PERSIAN 6 IN 1 SHEET." THIS SHEET WANTS TO CURL UP BECAUSE OF IT'S UNBALANCED NATURE.

PICTURE SHOWS: 16SWG 5/16" ID

HALF PERSIAN 5 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "HALF PERSIAN 3 IN 1 CHAIN." EACH RING CONNECTS TO TWO RINGS ON ONE SIDE AND THREE RINGS ON THE OTHER SIDE.

PICTURE SHOWS: 16SWG 13/32" ID

HALF PERSIAN 5 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "HALF PERSIAN 6 IN 1 SHEET." EACH RING CONNECTS TO 2 RINGS ON ONE SIDE AND 3 RINGS ON THE OTHER SIDE. THIS SHEET WANTS TO CURL UP BECAUSE OF IT'S UNBALANCED NATURE.

PICTURE SHOWS: 16SWG 11/32" ID

HALF PERSIAN 6 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "HALF PERSIAN 4 IN 1 CHAIN." EACH RING CONNECTS TO 3 RINGS ON EACH SIDE.

PICTURE SHOWS: 16SWG 1/2" ID

HALF PERSIAN 6 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"HALF PERSIAN 3 IN 1 CHAIN" MADE INTO A SHEET.

PICTURE SHOWS: 16SWG 5/16" ID

HALF PERSIAN ALTERNATING 4 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "HALF PERSIAN 4 IN 1 SHEET." ALTERNATES THE LAY OF THE AROUND EYE RINGS. THIS SHEET WANTS TO CURL UP BECAUSE OF IT'S UNBALANCED NATURE.

PICTURE SHOWS: 16SWG 11/32" ID

HALF PERSIAN ALTERNATING 5 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

THE NEXT PROGRESSION OF "HALF PERSIAN ALTERNATING 4 IN 1 SHEET."

PICTURE SHOWS: 16SWG 11/32" ID

HALF PERSIAN BRAIDED 6 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "HALF PERSIAN 6 IN 1 SHEET." ALL RINGS ARE WEAVED WITH OPPOSITE LAYERING.

PICTURE SHOWS: 16SWG 1/2" ID

HALF PERSIAN COMPRESSED 6 IN 1 SHEET

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "HALF PERSIAN 6 IN 1 SHEET." FOUR ROWS ARE WEAVED REGULAR AND THE FIFTH ROW IS WEAVED INSIDE OUT.

PICTURE SHOWS: 16SWG 7/16" ID

HALF PERSIAN CROSSOVER 5 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"HALF PERSIAN 3 IN 1 CHAINS" JOINED IN A SHEET BY SINGLE CONNECTIONS ON EACH SIDE.

PICTURE SHOWS: 16SWG 13/32" ID

HALF PERSIAN CROSSOVER 6 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"HALF PERSIAN 4 IN 1 CHAINS" JOINED IN A SHEET BY SINGLE CONNECTIONS.

PICTURE SHOWS: 16SWG 7/16" ID

HALF PERSIAN CROSSOVER 8 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"EUROPEAN 4 IN 1 CHAINS" JOINED IN A SHEET BY AROUND EYE CONNECTIONS.

PICTURE SHOWS: 16SWG 5/8" ID

HALF PERSIAN DOUBLE 6 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

ADDS A LAYER TO EACH SIDE OF A "HALF PERSIAN 3 IN 1 CHAIN."

PICTURE SHOWS: 16SWG 13/32" ID

HALF PERSIAN SPLIT CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A MIX OF "ONE AND A HALF PERSIAN CHAIN" AND "THREE QUARTERS PERSIAN X BACK CHAIN."

PICTURE SHOWS: 16SWG 17/64" ID

HALF PERSIAN STEP 6 IN 1 SHEET

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "HALF PERSIAN 6 IN 1 SHEET." HALF OF THE RINGS HAVE STAGGERED POSITIONING.

PICTURE SHOWS: 16SWG 3/8" ID

HALF PERSIAN STRIPED 5 IN 1 SHEET

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "HALF PERSIAN VARIANT 5 IN 1 SHEET" BUT THE RINGS WITH AROUND EYE CONNECTIONS ARE WEAVED WITH OPPOSITE LAY AS COMPARED TO THE PREVIOUS ROW.

PICTURE SHOWS: 16SWG 3/8" ID

HALF PERSIAN SYMMETRICAL 5 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "HALF PERSIAN 5 IN 1 CHAIN." ALTERNATES BETWEEN 2 AND 3 CONNECTIONS ON BOTH SIDES. LAYS FLAT ON EITHER SIDE.

PICTURE SHOWS: 16SWG 3/8" ID

HAWKSKAEDE 4 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "FORARS KAEDE 4 IN 1 CHAIN." EACH SIDE OF ARROWED RINGS POINTS IN OPPOSING DIRECTION.

PICTURE SHOWS: 16SWG 17/64" ID

HELM CAPTIVE CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"HELM CHAIN" WITH A CAPTIVE RING IN EACH 2 RING SECTION OF THE HELM CHAIN.

PICTURE SHOWS: 16SWG 7/32", 1/4", 11/32" ID

HELM CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A STRAIGHT CHAIN THAT INCLUDES AN ORBITING RING ON EVERY OTHER SECTION.

PICTURE SHOWS: 16SWG 5/16" ID, 18SWG 7/32" ID

HELMS DEEP CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "HELM CHAIN" BUT ADDS 2 VERTICAL RINGS TO EACH SECTION. STRUCTURALLY, THESE RINGS ARE NOT NECESSARY. THEY ARE HELD IN POSITION BY THEIR SPECIFIC AR IN REALTION TO THE LARGER RINGS.

PICTURE SHOWS: 16SWG 5/16" ID, 18SWG 7/32" ID

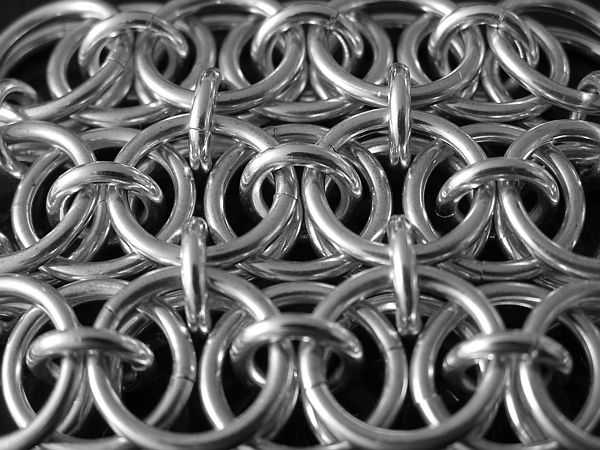

HELM SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"HELM CHAINS" BOLTED IN A SHEET.

PICTURE SHOWS: 16SWG 3/8", 7/32 ID

HEX CABLE CAPTIVE CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "HEX CABLE CHAIN" BUT WITH CAPTIVE RINGS IN EACH SECTION.

PICTURE SHOWS: 16SWG 3/16", 1/4", 5/16" ID

HEX CABLE CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A HEXAGONAL CHAIN WITH JAPANESE CONNECTIONS.

PICTURE SHOWS: 16SWG 3/16", 1/4", 5/16" ID

HILT 6 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "FULL PERSIAN 6 IN 1 CHAIN" BUT HAS 6 SIDES.

PICTURE SHOWS: 16SWG 3/8" ID

HILT CAPTIVE 6 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"HILT 6 IN 1 CHAIN" WITH A CAPTIVE RING IN EACH SECTION.

PICTURE SHOWS: 16SWG 11/32", 3/8" ID

HOODOO 4 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

3 RING MOBIUS UNITS CONNECTED IN A CHAIN WITH 2 ROWS. THE PATTERN WILL NOT HOLD IT'S SHAPE IF THE THE AR IS MUCH LARGER THAN 3.1

PICTURE SHOWS: 16SWG 3/16" ID

HOODOO 6 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

4 RING MOBIUS BALLS CONNECTED IN A SHEET.

PICTURE SHOWS: 16SWG 9/32" ID

HOODOO HEX 4 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"STRAIGHT 2 IN 1 CHAINS" CONNECTED AT EVERY OTHER INTERSECTION.

PICTURE SHOWS: 16SWG 13/64" ID

HOURGLASS TETRAHEDRON 3D

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"HOURGLASS UNITS" CONNECTED IN A 4 SIDED 3 DIMENSIONAL SHAPE.

PICTURE SHOWS: 16SWG 7/16" ID

HOURGLASS UNIT

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A UNIT WITH 8 RINGS MADE UP OF "ORBITAL UNITS."

PICTURE SHOWS: 16SWG 13/32" ID

INTERWOVEN 4 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

TWO "EUROPEAN 4 IN 1 SHEETS" WEAVED TOGETHER WITH PERSIAN CONNECTIONS.

PICTURE SHOWS: 16SWG 1/4" ID

INTERWOVEN SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"INTERWOVEN 4 IN 1 CHAINS" WEAVED TOGETHER IN A SHEET.

PICTURE SHOWS: 16SWG 5/16" ID

INVERTED ROUND 4 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

THIS IS "EUROPEAN 4 IN 1 SHEET" TURNED 90 DEGREES AND WRAPPED IN A 6 SIDED TUBE.

PICTURE SHOWS: 16SWG 1/4" ID

INVERTED ROUND CAPTIVE CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

THIS IS "EUROPEAN 4 IN 1 SHEET" TURNED 90 DEGREES AND WRAPPED IN A 6 SIDED TUBE WITH CAPTIVE RINGS.

PICTURE SHOWS: 16SWG 5/16" ID

JAPANESE 8 IN 2 3D

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"JAPANESE SQUARED 2/2 SHEET" EXTENDED IN 3 DIMENSIONS.

PICTURE SHOWS: 16SWG 1/4" ID

JAPANESE DRAGONSCALE SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"JAPANESE HEXAGONAL 1/2 SHEET" WITH CAPTIVE RINGS IN THE MIDDLE LAYER.

PICTURE SHOWS: 16SWG 3/8" ID, 18SWG 7/32" ID

JAPANESE HEXAGONAL 1/1 SHEET

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

ALL BOLTED CONNECTIONS ARRANGED IN A HEXAGONAL FORMATION. ALL SINGLE CONNECTIONS.

PICTURE SHOWS: 16SWG 1/8", 7/32" ID

JAPANESE HEXAGONAL 2/2 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

ALL BOLTED CONNECTIONS ARRANGED IN A HEXAGONAL SHAPE. VERTICAL RINGS ARE DOUBLED AND HORIZONTAL RINGS ARE DOUBLED.

PICTURE SHOWS: 16SWG 3/16", 5/16" ID

JAPANESE HEXAGONAL 2/3 SHEET

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

ALL BOLTED CONNECTIONS ARRANGED IN A HEXAGONAL FORMATION. VERTICAL RINGS ARE DOUBLED AND HORIZONTAL RINGS ARE TRIPPLED.

PICTURE SHOWS: 16SWG 7/32", 5/16", 11/32" ID

JAPANESE SQUARED 2/2 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

DOUBLE BOLTED CONNECTIONS ARRANGED IN A SQUARE SHAPE.

PICTURE SHOWS: 16SWG 3/16", 1/4" ID

JEN'S PIND 4 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"SPIRAL 4 IN 1 CHAIN" WITH A LOW ENOUGH AR THAT THE RINGS ARE LOCKED INTO POSITION.

PICTURE SHOWS: 16SWG 3/16" ID

JEN'S PIND 6 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A SPIRAL CHAIN WHERE EACH RING GOES THROUGH 6 OTHER RINGS. THIS WEAVE MUST HAVE RINGS WITH A LOW ENOUGH AR THAT THEY ARE LOCKED INTO POSITION.

PICTURE SHOWS: 16SWG 1/4" ID

JEN'S PIND 8 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "JEN'S PIND 4 IN 1 CHAIN" BUT EACH RING GOES THROUGH 8 OTHER RINGS. THIS WEAVE MUST HAVE A LOW ENOUGH AR THAT THE RINGS ARE LOCKED INTO POSITION.

PICTURE SHOWS: 16SWG 9/32" ID

JEN'S PIND 10 IN 1 CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "JEN'S PIND 6 IN 1 CHAIN" BUT EACH RING GOES THROUGH 10 OTHER RINGS. THIS WEAVE MUST HAVE A LOW ENOUGH AR THAT THE RINGS ARE LOCKED INTO POSITION.

PICTURE SHOWS: 16SWG 11/32" ID

JEN'S PIND 12 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "JEN'S PIND 8 IN 1 CHAIN" BUT EACH RING GOES THROUGH 12 OTHER RINGS. THIS WEAVE MUST HAVE A LOW ENOUGH AR THAT THE RINGS ARE LOCKED INTO POSITION.

PICTURE SHOWS: 16SWG 13/32" ID

JOSUE SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

COMBINES 6 RING UNITS OF "HALF PERSIAN 3 IN 1 CHAIN" TO FORM A SHEET.

PICTURE SHOWS: 16SWG 17/64" ID

KARMA CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"STRAIGHT 2 IN 1 CHAIN" WITH AN INDIVIDUAL CAPTIVE RING IN EACH SECTION. DOUBLE VERSIONS ON THE RIGHT. ALTERNATING VERSIONS ON THE BOTTOM.

TOP LEFT PICTURE SHOWS: 16SWG 9/64", 15/64" ID
BOTTOM LEFT PICTURE SHOWS: 16SWG 9/64", 15/64" ID
TOP RIGHT PICTURE SHOWS: 16SWG 13/64", 9/32" ID
BOTTOM RIGHT PICTURE SHOWS: 16SWG 25/128", 19/64" ID

KARUNA CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "ORBITAL VIPERA BERUS 2 CHAIN" BUT THE LARGE RINGS ARE CONNECTED IN A "STRAIGHT 2 IN 1 CHAIN."

PICTURE SHOWS: 16SWG 7/32", 13/32" ID

KYLIX CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"PERSIAN SPLIT 6 IN 1 CHAIN" ON ONE SIDE AND TWO "STRAIGHT 2 IN 1 CHAINS" LEANING WITH EACH OTHER ON THE OTHER SIDE.

PICTURE SHOWS: 16SWG 11/32" ID

LADY OF THE HOUSE CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

COMBINES "HALF PERSIAN 3 IN 1 CHAIN" AND "BOX 4 IN 1 CHAIN."

PICTURE SHOWS: 16SWG 9/32" ID

LIBERTO CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "HELM CHAIN" BUT LAYERS A CONTINUOUS ROW OF MIDDLE RINGS ON EACH OTHER WITHOUT INTERCONNECTING.

PICTURE SHOWS: 16SWG 7/32", 11/32" ID

LIBERTO LAYERED CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "LIBERTO CHAIN" BUT LAYERS THE MIDDLE RINGS SIMILAR TO "SANDSTONE CHAIN."

PICTURE SHOWS: 16SWG 7/32", 11/32" ID

LIBERTO STAGGERED CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "LIBERTO CHAIN" BUT LAYERS THE MIDDLE RINGS ABOVE AND BELOW EACH OTHER.

PICTURE SHOWS: 16SWG 7/32", 11/32" ID

LION'S CAGE CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A COMBINATION OF INVERTED ROUND CAPTIVE CHAIN AND PIRSIG'S BRIDGE (PIRSIG'S BRIDGE IS NOT A WEAVE, IT'S A DESIGN THAT USUALLY ENDS ROUNDS AND TUBES NEATLY).

PICTURE SHOWS: 16SWG 3/16", 5/16", 7/16" ID

LION'S CAGE UNIT

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A UNIT THAT FEATURES A CAPTIVE RING INSIDE A SECTION OF INVERTED ROUND CAPTIVE AND HAS ENDS CLOSED WITH PIRSIG'S BRIDGE (PIRSIG'S BRIDGE IS NOT A WEAVE, IT'S A DESIGN THAT USUALLY ENDS ROUNDS AND TUBES NEATLY).

PICTURE SHOWS: 16SWG 3/16", 5/16", 7/16" ID

LIZARD BACK SHEET

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

ALL RIGHT OR LEFT HANDED "HALF PERSIAN 3 IN 1" CHAINS, ALTERNATING UP AND DOWN, WEAVED TOGETHER BY "EUROPEAN 4 IN 1" CONNECTIONS.

PICTURE SHOWS: 16SWG 5/16", 1/4" ID

MEDO PERSIAN 4 IN 1

MIZU 4 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

THIS IS "GRIDLOCK 4 IN 1 SHEET" WRAPPED WITH 6 SIDES.

PICTURE SHOWS: 16SWG 1/4" ID

MONSTER 5 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "FULL PERSIAN 5 IN 1 CHAIN." ALTERNATES THE SPIRAL DIRECTION FOR A BALANCED EFFECT.

PICTURE SHOWS: 16SWG 11/32" ID

MYCENAEAN 8 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

FOUR "STRAIGHT 2 IN 1 CHAINS" INTERWOVEN INTO A 8 IN 1 CHAIN.

PICTURE SHOWS: 16SWG 11/32" ID

NOT TAO 3 UNIT

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

THREE LAYERS OF HORIZONTAL RINGS HELD STABLE BY 3 VERTICAL RING CONNECTORS FORMING A TRIANGE.

PICTURE SHOWS: 16SWG 7/32", 11/32" ID

NOT TAO 4 CHAIN

NOT TAO 4 UNIT

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

THREE LAYERS OF HORIZONTAL RINGS HELD STABLE BY 4 VERTICAL RING CONNECTORS FORMING A SQUARE.

PICTURE SHOWS: 16SWG 7/32", 11/32", 1/2" ID

NOT TAO LINEAR

ONE AND A HALF PERSIAN CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "FULL PERSIAN 6 IN 1 CHAIN." EACH SECTION IS SEPARATED BY TWO PERPENDICULAR RINGS.

PICTURE SHOWS: 16SWG 11/32" ID

ORBIT

ORBITAL UNIT

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

2 RINGS CONNECTED TO EACH OTHER WITH AN ORBITING RING BETWEEN THEM.

PICTURE SHOWS: 16SWG 11/32" ID

ORBITAL VIPERA BERUS CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"STRAIGHT 2 IN 1 CHAIN" OR "STRAIGHT 4 IN 2 CHAIN" WITH LAYERED LARGE RINGS INTERWOVEN.

PICTURE SHOWS:
(TOP)16SWG 7/32", 11/32" ID

(BOTTOM)16SWG 9/32", 13/32" ID

ORBITAL VIPERA BERUS TWO 4 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"ORBITAL VIPERA BERUS CHAIN" WITH ANOTHER "STRAIGHT 2 IN 1 CHAIN" GOING THROUGH THE LARGER RINGS. IN THIS WEAVE, THE "STRAIGHT 2 IN 1 CHAINS" HAVE OPPOSING LEAN.

PICTURE SHOWS: 16SWG 7/32", 13/32" ID

ORBIT CONINUOUS CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A HIDDEN "STRAIGHT 4 IN 2 CHAIN" WITH ORBITING RINGS AROUND THE ENTIRE LENGTH. ORBITING RINGS ARE HELD IN PLACE BY 2 LARGER RINGS ON BOTH ENDS OF THE "STAIGHT 4 IN 2 CHAIN."

PICTURE SHOWS: 16SWG 3/16", 1/4", 5/16" ID

ORBIT SHEET

ORBIT UNIT

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A SECTION OF "STRAIGHT 4 IN 2 CHAIN" WHERE THE END RINGS ARE RELATIVELY BIGGER THAN THE MIDDLE RINGS. ORBITING RINGS GO AROUND THE MIDDLE RINGS.

PICTURE SHOWS: 16SWG 3/16", 7/32", 5/16" ID

ORBIT WEB BASE 4

ORBIT WEB BASE 6

PADDY'S 5 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "HALF PERSIAN 5 IN 1 SHEET" EXCEPT THERE ARE AROUND EYE CONNECIONS INSTEAD OF THROUGH EYE CONNECITONS.

PICTURE SHOWS: 16SWG 11/32" ID

PERSIAN BOX 5 IN 1 TWIST

PERSIAN DRAGONSCALE

PERSIAN ELF SHEET

PERSIAN SPLIT 6 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

ALTERNATES BETWEEN HALF AND FULL PERSIAN ON ONE SIDE. 2 LAYERS OF PERSIAN INLINE RINGS ON THE OTHERS SIDE.

PICTURE SHOWS: 16SWG 5/16" ID

PLANCK'S CONSTANT 6 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"WAVE FUNCTION 6 IN 1 CHAIN" BUT WITH SPIRALING CONNECTIONS.

PICTURE SHOWS: 16SWG 5/16" ID

QUAG SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "EUROPA 8 IN 1 SHEET" BUT THERE IS ONLY ONE "EUROPEAN 4 IN 1 SHEET" AND THE VERTICAL RINGS ARE INTERCONNECTED IN "STRAIGHT 2 IN 1 CHAINS."

PICTURE SHOWS: 16SWG 11/32" ID

REINFORCED BOREWORM CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

ALTERNATES BETWEEN "REINFORCED INVERTED CHAIN" AND "BOREWORM CHAIN."

PICTURE SHOWS: 16SWG 11/32" ID

REINFORCED INVERTED CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"INVERTED ROUND 4 IN 1 CHAIN" WITH VERTICAL INTERLACED RINGS.

PICTURE SHOWS: 16SWG 11/32" ID

ROUNDMAILLE 4 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

EUROPEAN 4 IN 1 WRAPPED IN A TUBE.

PICTURE SHOWS: 16SWG 1/4" ID

ROUNDMAILLE CAPTIVE CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

EUROPEAN 4 IN 1 WRAPPED IN A TUBE WITH CAPTIVE RINGS IN EACH SECTION.

PICTURE SHOWS: 16SWG 1/4" ID

SANDSTONE 4 IN 1

SHENANIGANS 2 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "DRAGON TAIL 2 IN 1 CHAIN" BUT THIS WEAVE REVERSES DIRECTION CONSISTENTLY.

PICTURE SHOWS: 16SWG 9/32" ID, 18SWG 3/16" ID

SICILIAN 6 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

ADDS ANOTHER LAYER OF RINGS TO "HALF PERSIAN 3 IN 1 CHIAN."

PICTURE SHOWS: 16SWG 3/8" ID

SPARTA

SPIRAL 4 IN 1

SPIRAL 8 IN 2

SPIRAL LOCK CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

ADDS LOCKING RINGS TO "SPIRAL 4 IN 1 CHAIN" TO HOLD THE SPIRAL STRUCTURE.

PICTURE SHOWS: 16SWG 5/32", 5/16" ID

SPIRAL WRAP LOCK

STAGGERED PERSIAN ELVEN CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A MIX OF "ELF 4 IN 1 CHAIN" AND "PERSIAN SPLIT 6 IN 1 CHAIN."

PICTURE SHOWS: 16SWG 11/32" ID

STRAIGHT 2 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

BOLTED SINGLE CONNECTIONS.

PICTURE SHOWS: 16SWG 1/8" ID

STRAIGHT 4 IN 2 CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

BOLTED DOUBLE CONNECTIONS.

PICTURE SHOWS: 16SWG 3/16" ID

STRAIGHT 6 IN 3

SWEETPEA

SYRINGA 5 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

2 OPPOSITE HANDED "HALF PERSIAN 3 IN 1 CHAINS" WEAVED TOGETHER WHERE EVERY RING IS 5 IN 1.

PICTURE SHOWS: 16SWG 11/32" ID

TAILSPIN CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "FULL PERSIAN 5 IN 1 CHAIN." 3/4 OF THE RINGS GRAB AN EXTRA SPIRAL CONNECTION.

PICTURE SHOWS: 16SWG 11/32" ID

THREE QUARTERS PERSIAN BERUS

THREE QUARTERS PERSIAN BERUS PILAR

THREE QUARTERS PERSIAN BERUS SHEET

THREE QUARTERS PERSIAN SHEET

THREE QUARTERS PERSIAN SHEET - HP3 SHEET 6 IN 1 HYBRID

THREE QUARTERS PERSIAN X BACK

THREE QUARTERS PERSIAN X BACK SHEET

TIFFANY 6 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"ELF SHEET" MADE INTO A 6 IN 1 SHEET BY CONNECTING THE HORIZONTAL RINGS.

PICTURE SHOWS: 16SWG 9/32" ID

TREES

TREEZANTINE

TRI CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

THREE "STRAIGHT 2 IN 1 CHAINS" BOLTED TOGETHER.

PICTURE SHOWS: 16SWG 5/32" ID

TRINITY 3 IN 1 SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "EUROPEAN 3 IN 1 SHEET." EACH SINGLE CONNECTION LAYS IN THE SAME DIRECTION.

PICTURE SHOWS: 16SWG 7/32" ID

TRITON 3 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

APPLIES "FORARS KAEDE 4 IN 1 CHAIN" TO A 3 IN 1 CHAIN. ALSO CALLED "HALF PERSIAN FLIP 3 IN 1 CHAIN."

PICTURE SHOWS: 16SWG 3/16" ID

TRIZANTINE

TURKISH ROUNDMAILLE 4 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A COMBINATION OF "ROUNDMAILLE 4 IN 1 CHAIN" AND "BYZANTINE 2 CHAIN."

PICTURE SHOWS: 16SWG 1/4", 3/16" ID

TURKISH ROUNDMAILLE CAPTIVE CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"TURKISH ROUNDMAILLE 4 IN 1 CHAIN" WITH CAPTIVE RINGS IN EACH SECTION.

PICTURE SHOWS: 16SWG 9/32" ID

TWEEK 3 IN 1 CHAIN

NOT RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"TRI CABLE CHAIN" MADE WITH ALL 3 IN 1 CONNECTIONS. BOTTOM PICTURE SHOWS THE SAME WEAVE TWISTED CREATING A TRIANGULAR CROSS SECTION. CREDIT TO LOUIS BRACHT FOR CREATING THIS WEAVE.

PICTURE SHOWS: 16SWG 5/32" ID

TWO WAY SPIRAL

TWO WAY SPIRAL ORBITAL

UNAI SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

A SHEET IN WHICH EACH RING IN THE "STRAIGHT 2 IN 1 CHAINS" IS CONNECTED TO THREE RINGS IN THE "EUROPEAN 4 IN 1 SHEET."

PICTURE SHOWS: 16SWG 5/16" ID

VERTEBRAE

VERTICAL DRAGON

VIPERSCALE

VOODOO SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"HOODOO 6 IN 1 SHEET" WITH SMALLER HORIZONTAL TRIPLED RINGS BINDING EACH MOBIUS KNOT. THE CHAIN FORM IN THE TOP PICTURE CAN BE MADE WITH SMALLER AR RINGS.

PICTURE SHOWS:
(TOP)16SWG 11/64", 19/64" ID

(MIDDLE AND BOTTOM)16SWG 3/16", 11/32" ID

WAVE FUNCTION 6 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

FOUR "STRAIGHT 2 IN 1 CHAINS" INTERWOVEN INTO A 6 IN 1 CHAIN.

PICTURE SHOWS: 16SWG 9/32" ID

XYBEC 6 IN 1 CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "FULL PERSIAN 5 IN 1 CHAIN." GRABS AN EXTRA RING THAT CONTINUES THE SPIRAL STRUCTURE.

PICTURE SHOWS: 16SWG 11/32" ID

XYLEM CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "FULL PERSIAN 5 IN 1 CHAIN." HALF OF THE RINGS GRAB AN EXTRA SPIRAL CONNECTION.

PICTURE SHOWS: 16SWG 11/32" ID

YUCCA CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"FULL PERSIAN 6 IN 1 CHAIN" ON ONE SIDE AND TWO "STRAIGHT 2 IN 1 CHAINS" LEANING WITH EACH OTHER ON THE OTHER SIDE.

PICTURE SHOWS: 16SWG 11/32" ID

ZYLAR CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"ELF 4 IN 1 CHAIN" LOCKED INTO IT'S COMPRESSED FORM BY ADDING OUTER VERTICAL RINGS. TWO "STRAIGHT 2 IN 1 CHAINS" LEANING AGAINST EACH OTHER AND HELD IN PLACE BY OUTER VERTICAL RINGS.

PICTURE SHOWS: 16SWG 5/16" ID

ZYLAR SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"ZYLAR CHAINS" CONNECTED IN A SHEET.

PICTURE SHOWS: 16SWG 5/16" ID

ZYMIRA CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"STRAIGHT 2 IN 1 CHAIN" LOCKED IN PLACE ON BOTH SIDES.

PICTURE SHOWS: 16SWG 7/32" ID

ZYMIRA SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"ZYMIRA CHAINS" CONNECTED IN A SHEET.

PICTURE SHOWS: 16SWG 7/32" ID

ZYMOLISIS CHAIN

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "ZYLAR CHAIN." THE "STRAIGHT 2 IN 1 CHAINS" LAY WITH EACH OTHER.

PICTURE SHOWS: 16SWG 5/16" ID

ZYMOLISIS SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

"ZYMOLISIS CHAIN" MADE INTO A SHEET.

PICTURE SHOWS: 16SWG 5/16" ID

ZYSTER SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "ZYLAR SHEET." EACH ROW OF "STRAIGHT 2 IN 1 CHAINS" ALTERNATE DIRECTION. HALF OF THE VERTICAL RINGS HAVE BOLTED CONNECTIONS WHICH MAKES THEM LAY IN DIFFERENT DIRECTIONS.

PICTURE SHOWS: 16SWG 9/32" ID

ZYSTOLIC SHEET

RECOGNIZED BY THE M.A.I.L. COMMUNITY AS A WEAVE.

SIMILAR TO "ZYLAR SHEET." EACH ROW OF "STRAIGHT 2 IN 1 CHAINS" ALTERNATE DIRECTION. HALF OF THE VERTICAL RINGS ARE USED.

PICTURE SHOWS: 16SWG 1/4", 9/32" ID
